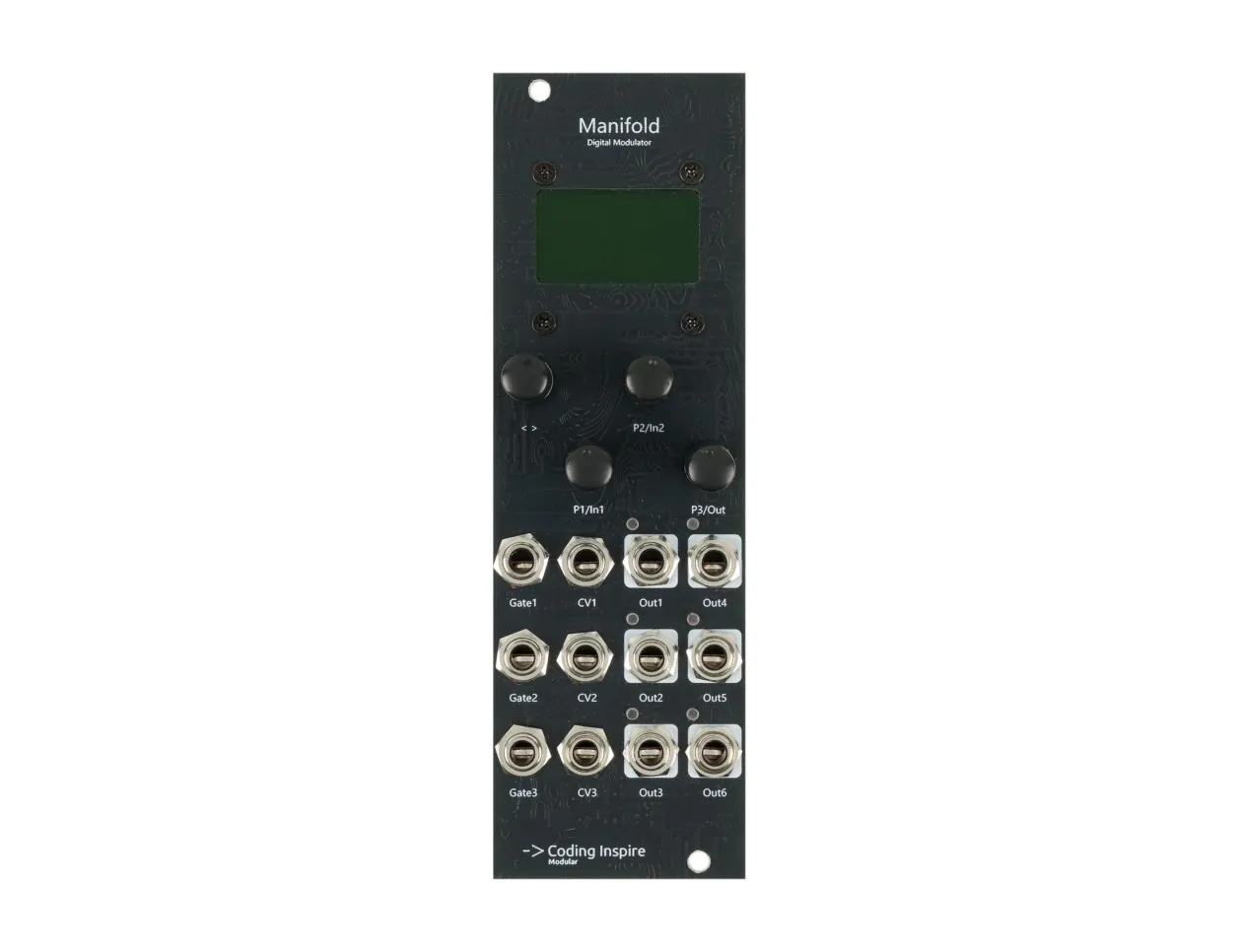

Manifold Integrated Digital Modulator

Coding Inspire Modular Manifold

The Manifold from Coding Inspire Modular is a digital multi-function module that offers 16 different utilities with 12 slots for simultaneous usage. Choose from a bevy of helpful micro modules that can be loaded up to 12 at a time. The 16 options give you: LFO, Envelope Generator, Clock Divider, Logic, Sample and Hold, Random, Generative CV Sequencer, Euclidean Sequencer, Arpeggiator, Rhythm Sequencer, Mixer, Fader, VCA, Inverter, Quantizer, and Stack Overflow. Easily call up any of the modules and route them to one of the 6 outputs, assigned the 3 gate and 3 CV inputs to them, and virtually patch them between each other without having to use any cables. Indeed, the Manifold from Coding Inspire Modular is a perfect solution for compact systems looking to extract the most functionality out of a limited space.

Manifold Features

• 12 Simultaneous virtual modules
• 16 Selectable module types: LFO (Low Frequency Oscillator), ASR (Envelope Generator), CLKDIV (Clock Divider), Logic, SNH (Sample and Hold), RNDOM (Random), GENSEQ (Generative CV Sequencer), Eucld (Euclidean Sequencer), ARP (Arp), Beati (Beat Rhythm Sequencer), MIX (Mixer), FADER (Fader), VCA (Voltage-Controlled Amplifier), Invert (Inverter), Qunt (Quantizer), OVERFL (Stack Overflow)
• Every virtual module includes 3 parameter knobs, 2 inputs, and 1 output
• 3 Gate, 3 CV inputs, and 6 outputs
• Any of the 12 modules can be freely patched to each other or to the physical panel I/O
• Dual-view interface with a Router View and a Param View (for the 3 parameters), toggled with a single push-button
• Comprehensive preset system with Factory Presets and random preset generation (Gen Preset)
• Fast parameter changes, plus default output-to-jack assignments
